Enable Editable Fields in SAP AIF Monitor

AIF - How to Enable Editing of Specific Fields in the AIF Monitoring Tool

One of the useful features available in SAP Application Interface Framework (AIF) is the ability to make certain payload fields editable.
This functionality allows users to correct incoming data directly within the AIF Monitoring Tool - especially when the original message data (RAW payload) contains errors.

💼 Business Case

Scenario:
An AIF interface is used to create Business Partner (BP) data.

Challenge:
The BP data received from an external system fails to pass data quality or validation checks in the target SAP S/4HANA system.

Solution:

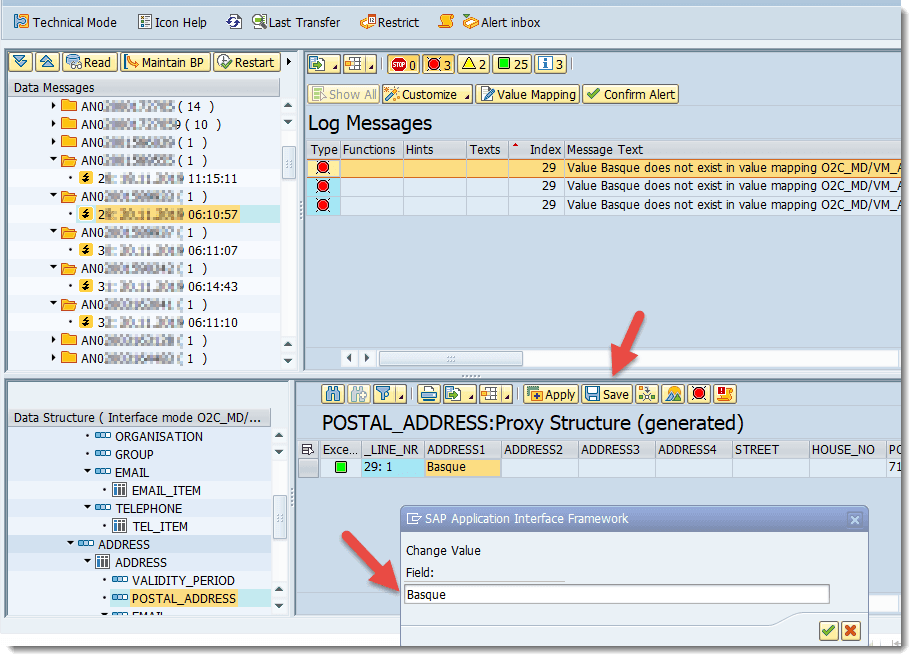

Users can manually edit specific, predefined fields (e.g., Street, House Number, or Postal Code) in the AIF Monitor.
After making corrections, the message can be reprocessed successfully with the updated values.

⚙️ Configuration Steps – How to Enable Editable Fields

1. Open the AIF Customizing transaction: /AIF/CUST

2. Under Error Handling, select Define Interface-Specific Features



3. Choose the Interface for which you want to enable field editing

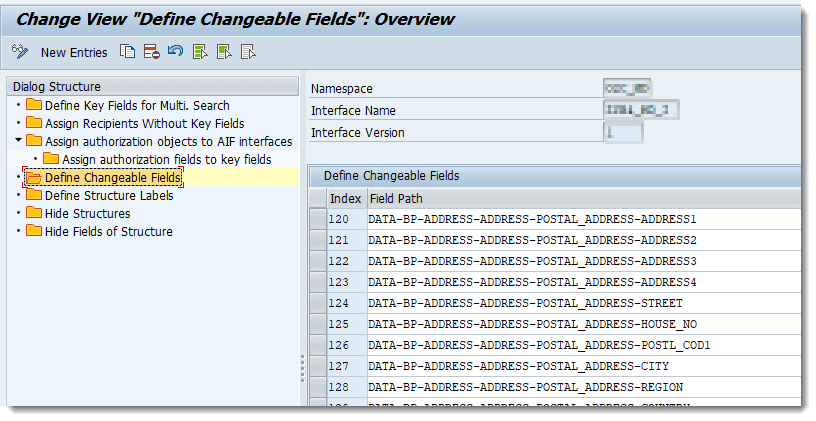

4. Navigate to Define Changeable Fields



5. Use the search help to select which fields should be editable

6. Save your changes

💡 Tip: Enable editing only for fields that are safe to change manually — to prevent data inconsistencies in downstream systems.

✅ Summary

Editable payload fields in SAP AIF give business users more flexibility when dealing with incorrect inbound data.
By configuring changeable fields, you can reduce reprocessing effort, improve data accuracy, and speed up issue resolution directly within the AIF Monitoring Tool.
